Berrys Pipework

PLX is a complete range of specialist welded pipework systems for the safe transfer of fuels and their vapours.

Enquire about Products
Single Wall Pipework

System Overview


  • Single-Wall and Close-Fit secondary-contained options
  • Excellent lifetime cost savings vs traditional materials
  • Leak detection capability (secondary containment)
  • Maximised flow rates
  • Efficient electrofusion installation process
  • Solutions for AdBlue and forecourt cable protection
  • Wide range of dedicated tooling, sizes 32mm to 160mm
  • 30 year design life
  • EN14125 approved


Single Wall Containment


PLX single-wall is a multi-layered polyethylene composite pipe system featuring an internal permeation barrier, offering environmental protection into fuelling applications and approved to the requirements of EN14125. PLX single-wall pipe is accompanied by a fully matched range of electrofusion fittings and transition pieces offering a complete system for the safe transfer of fuels and their vapours. PLX single-wall pipework is commonly used for below ground applications for vent and vapour recovery lines.

Key Features

  • Maximised flow rates and excellent lifetime cost savings over traditional materials
  • Efficient electrofusion installation process
  • 10 bar (SDR11) or 6 bar (SDR17) pressure rating
  • Available in 6m straight lengths, and 50m or 100m coils
  • Sizes 32mm to 160mm
  • 30 year design life, EN14125 approved

Enquire about Single Wall Containment

PLX Secondary Contained Close Fit


PLX close-fit pipework comprises a co-extruded polyethylene multi-layer primary pipe offering maximum permeation protection within fuelling applications, along with a secondary containment pipe which provides additional security against accidental fuel leaks or losses. The secondary pipe features ribs on the bore of the pipe ensuring the primary pipe is always centralised within the system. PLX close-fit is commonly used below and above ground within forecourts, emergency/back-up power generators, industrial refuelling and off-grid power.

Key Features

  • Compact installation solution
  • Fully matched range of secondary-contained electrofusion fittings
  • Unique "One-Weld" fittings saving significant time in installation
  • Ability to monitor for leak detection requirements
  • Available in 6-metre straight lengths, and 50m or 100m coils
  • Primary pipe 10 bar (SDR11) or 6 bar (SDR17), 4 bar (secondary pipe) pressure ratings
  • Sizes 32/40mm to 110/125mm
  • 30 year design life, EN14125 approved
Enquire about PLX Secondary Contained Close Fit

One Weld Couplers

Our new range of electrofusion PLX fittings have been designed to significantly improve installation time on site. PLX One-Weld reduces the amount of pipe preparation time required and allows both the primary and secondary joints to be welded simultaneously in one weld cycle.

Key Features

  • 4 welds within one electrofusion cycle
  • Saving significant installation time (average 15 minutes per fitting)
  • Designed for use with PLX secondary contained Close-Fit pipe
  • Available in 63-75mm and 110-125mm
  • Manual and barcode welding options
  • Industry first One-Weld elbow

Enquire about One Weld Couplers

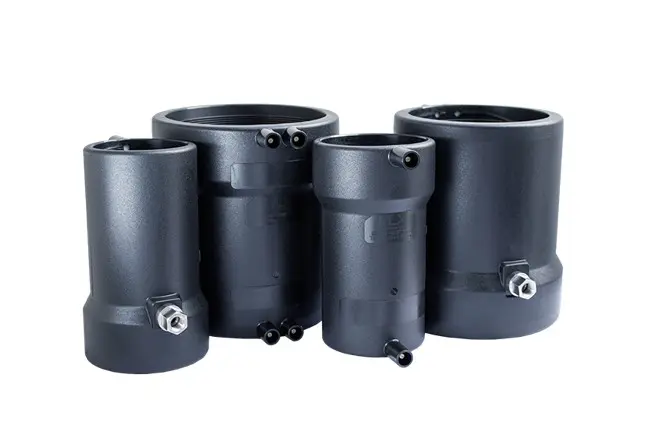

Termination Fittings

PLX One-Weld Termination fittings have been specifically designed for use as an end-of-line connection as part of our leading fuel pipework system, PLX. The fittings enable PLX secondary contained close fit pipe to be terminated to a single wall connection all within one fitting, while maintaining secondary containment throughout the pipeline, therefore reducing the number of preparation steps, fittings and welding sequences required over traditional termination assemblies.


Key Features

  • Reduces the amount of time and parts required during installation
  • Designed for use with PLX secondary contained close-fit pipe
  • Compact design vs traditional methods
  • Available in 63-75 mm and 110-125 mm
  • Interstitial monitoring options
  • Adheres to Blue Book recommendations


Enquire about Termination Fittings

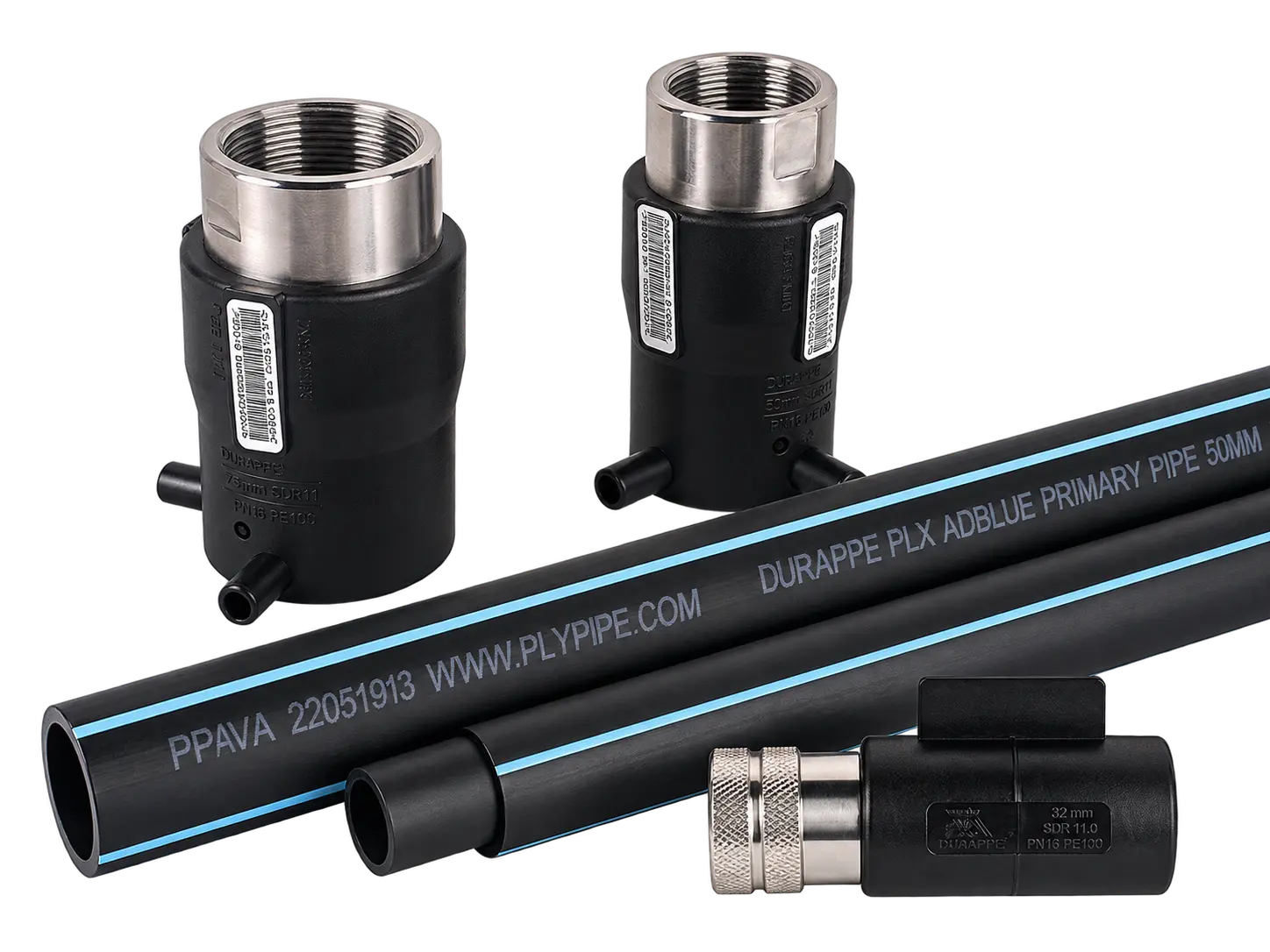

PLX Blue Secondary Contained AdBlue® System

With the ever-increasing use of AdBlue to lower NOx concentrations in the exhaust emissions of diesel engines, a high quality pipework system is required to convey the solution from tank to pump. PLX Blue is a secondary contained system, giving the option to be monitored for leak detection if required, and offering peace of mind to the installer and client alike.


Key Features

  • Compact installation solution
  • Fully matched range of secondary-contained electrofusion fittings
  • 63-75mm One-Weld fittings
  • Ability to monitor for leak detection requirements
  • Available in 6-metre straight lengths
  • Primary pipe 10 bar (SDR11), 4 bar (secondary pipe) pressure ratings
  • Sizes 32/40mm to 63/75mm
  • 30 year design life, fully tested



Enquire about Blue Secondary Contained AdBlue® System

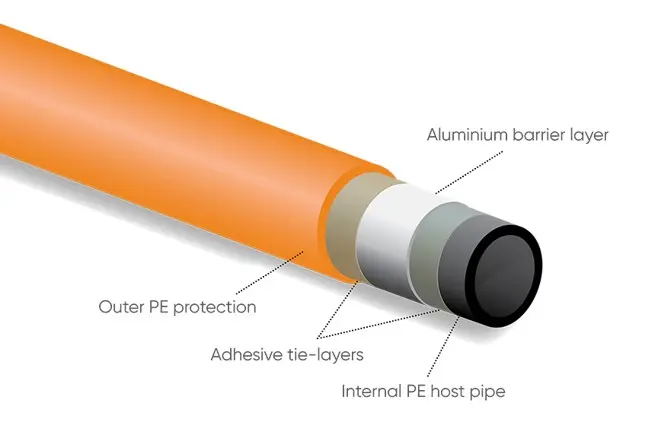

PLX Electrical Conduit System

A unique external barrier conduit, with an integrated aluminium barrier layer, offering true external permeation protection to conveyed cables from fuel spillages and chemicals present in contaminated land.  Our PLX Electrical Conduit is suited for non pressure applications in petro chemical and industrial environments.


Key Features

  • Compact installation solution
  • Protects conveyed cables from potential fuel spillages or leaks, along with chemicals that may be
  • present in contaminated land
  • Offered in 32mm
  • Suitable for corrosive conditions
  • Lightweight, flexible pipe
  • Easy to install mechanical fittings
  • Electrofusion flanged entry boot option to PE chambers

Enquire about Electrical Conduit System
